China OEM/ODM HDPE EF Zovekera Electrofusion HDPE 45 Digirii Chigongono Kupanga ndi Factory |CHANGRONG

OEM/ODM HDPE EF Zosakaniza Electrofusion HDPE 45 Degree Chigongono Chithunzi Chowonetsedwa

OEM/ODM HDPE EF Zopangira Electrofusion HDPE 45 Degree Elbow

Kufotokozera Kwachidule:

1.Dzina:EF 45 Degree Elbow.

2. Kukula:50-1000 mm.

3. Kupanikizika:PE100 SDR11/ Madzi PN16 /Gasi 10 Bar.

4. Muyezo:ISO4427 EN12201/ ISO4437, EN1555.

5. Kupakira:Matabwa, makatoni kapena matumba.

6. Kutumiza:Masiku 3-7, Kutumiza Mwachangu.

7. Kuyang'anira katundu:Kuyang'anira zopangira.Anamaliza kufufuza mankhwala.Kuyendera kwa chipani chachitatu pa pempho lamakasitomala.

Titumizireni imelo Tumizani imelo

Tsatanetsatane wa Zamalonda

Kufotokozera & Kukonzekera

Ntchito & Zitsimikizo

Zolemba Zamalonda

Zambiri Zambiri

CHUANGRONG ndi kampani yogawana nawo komanso yophatikizira malonda, yomwe idakhazikitsidwa mu 2005 yomwe imayang'ana kwambiri kupangaMapaipi a HDPE, Mapaipi & Mavavu, Mapaipi a PPR, Zopangira & Mavavu, PP compression fittings & Valves, ndi kugulitsa Pulasitiki Pipe Welding makina, Chitoliro Zida, Chitoliro Kukonza Clampndi zina zotero.

CHUANGRONG imatha kupereka Zopangira Zapamwamba za HDPE Electrofusion ya Madzi, Gasi ndi Mafuta DN20-1200mm, SDR17, SDR11, SDR9 yokhala ndi bar code pamtengo wopikisana.

PE100 Electrofusion 45 Degree Elbow For Water Gasi ndi Mafuta

Mtundu wa Zosakaniza	Kufotokozera	Diameter(mm)	Kupanikizika
Zithunzi za HDPE Electrofusion	EF Coupler	DN20-1400mm	SDR17, SDR11 SDR9(50-400MM)
	EF Reducer	DN20-1200mm	SDR17, SDR11 SDR9(50-400MM)
	EF 45 deg chigongono	DN50-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF 90 deg chigongono	DN25-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF uwu	DN20-800mm	SDR17, SDR11 SDR9(50-400MM)
	EF Kuchepetsa Tee	DN20-800mm	SDR17, SDR11 SDR9(50-400MM)
	Mtengo wa EF	DN50-400mm	SDR17, SDR11 SDR9(50-400MM)
	EF Stub End	DN50-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF Nthambi Saddle	DN63-1600mm	Mtengo wa SDR17, SDR11
	EF Tapping Saddle	DN63-400mm	Mtengo wa SDR17, SDR11
	EF Kukonza Saddle	DN90-315mm	Mtengo wa SDR17, SDR11

Takulandilani kudzayendera fakitale yathu kapena kuchita kafukufuku wa chipani chachitatu.

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku:chuangrong@cdchuangrong.com

Mafotokozedwe Akatundu

45 degree Elbow Electrofusion HDPE Fittings for Water supply PN16 SDR11 PE100

1. Electrofusion HDPE fittings ndi welded ndi electrofusion makina kulumikiza HDPE mapaipi pamodzi.

2. Pambuyo electrofusion kuwotcherera makina pulagi mu magetsi ndi kuyatsa, The mkuwa waya m'manda anaikapo mu fusesi magetsi.

3. Zopangira za HDPE zimatenthedwa ndikupangitsa kuti HDPE isungunuke, Chitoliro chophatikizana cha HDPE ndi zolumikizira bwino.

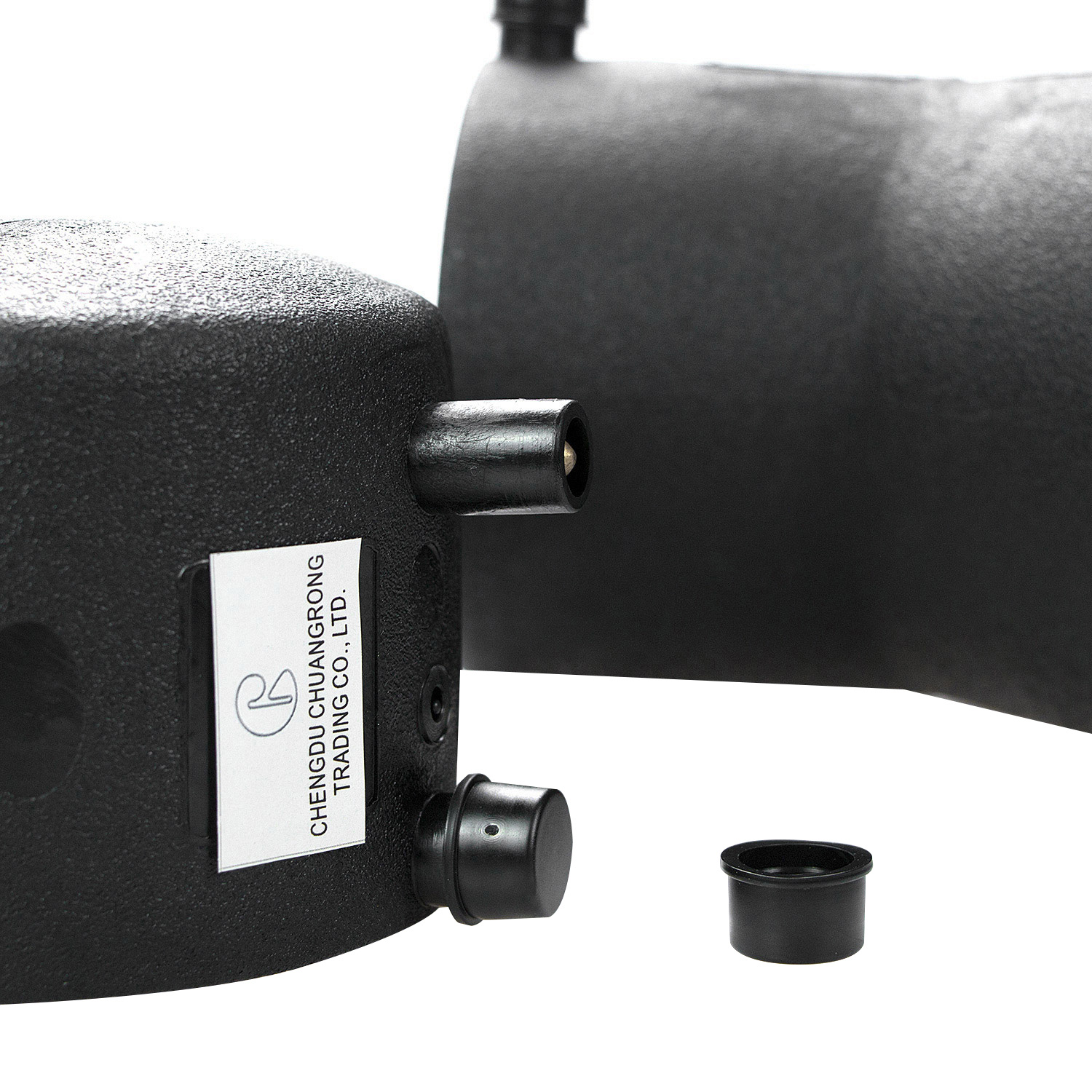

Pin

Piniyo imapereka njira yodziwikiratu kuti iwonetsetse kuti zowotcherera zolondola zimagwiritsidwa ntchito.Mkati mwa pini iliyonse muli choletsa.Bokosi la hte electrofusion likalumikizidwa ndi koyenera, piniyo imathandiza kuti izindikire nthawi yoyenera yophatikizira yomwe ikufunika kupanga cholumikizira.Zomwe wogwiritsa ntchito ayenera kuchita ndikusindikiza go.

Zizindikiro

Kupsyinjika komwe kumapangidwa ndi pulasitiki yosungunuka yomwe ikukulirakulira m'malo olumikizirana mkati mwazoyenera panthawi ya electrofusion kukakamiza ma lugs owonetsa.Ichi ndi chizindikiro chowoneka kuti kukakamizidwa kofunikira kolumikizana kwakwaniritsidwa.

Kuumbidwa - mu kuwotcherera magawo

Zowotcherera pamanja zimawumbidwa m'thupi zida zonse.Zambiri zomwe zaperekedwa zikuphatikiza kukula kwa zotengera, materail(PE80 KAPENA PE110), ma SDR a mapaipi ogwiritsiridwa ntchito, zowotcherera, ndi kukakamiza kwamafuta ndi madzi.

Barcode

Kuwongolera kwaubwino ndikofunika kwambiri pakupambana kwa zolumikizira.Barcode imapereka kutsata kwathunthu mpaka pagulu la polima, zopangira momwe zopangirazo zimapangidwira zotengera aliyense.Barcode imanyamulanso zowotcherera kwa ife okhala ndi mabokosi a electrofusion okhala ndi barcode scanner.Khodi yatsopano ya QR pazowonjezera zonse ikuwonetsa kutsata kwathunthu pamtundu uliwonse womwe umafika kwa ogula.

Dzina lazogulitsa:	45 Degree Elbow Electrofusion HDPE Fittings for Water Supply PN16 SDR11 PE100	Zofunika:	PE100 Virgin Raw Material
Zokhazikika:	EN 12201-3:2011, EN 1555-3:2010	Ntchito:	Gasi, Madzi, Mafuta Etc
Kufotokozera:	OD50-1000mm	Doko:	China Main Port

CHUANGRONG nthawi zonse amapereka zinthu zabwino kwambiri komanso mtengo kwa makasitomala.Zimapatsa makasitomala phindu labwino kuti apange bizinesi yawo molimba mtima.Ngati muli ndi chidwi ndi kampani yathu ndi katundu, chonde musazengereze kulankhula nafe kuti mudziwe zambiri.

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku:chuangrong@cdchuangrong.com kapena Tel: + 86-28-84319855

Zam'mbuyo: HDPE Socket Fusion Fittings Female Tee PE100 PN16 SDR11 For Industrial Liquids Transportation

Ena: Kukula Kwathunthu Buluu Wapamwamba Wopanikizika PPR Pipe Kwa HAVC Ndi Madzi Ozizira

mfundo φD	L mm	A mm	Φd mm
50 × 45 °	130	50	4.7
63 × 45 °	180	63	4.7
90 × 45 °	230	83	4.7
110 × 45 °	270	90	4.7
160 × 45 °	280	85	4.7
200 × 45 °	330	100	4.7
250 × 45 °	420	115	4.7
315 × 45 °	470	130	4.7
400 × 45 °	580	140	4.7
450 × 45 °	587	145	4.7
500 × 45 °	587	151	4.7
560 × 45 °	735	180	4.7
630 × 45 °	735	185	4.7

CHUANGRONG ndi makampani ake ogwirizana amakhazikika mu R&D, kupanga, kugulitsa ndi kukhazikitsa mapaipi apulasitiki amtundu watsopano ndi zozolowera.Inali ndi mafakitale asanu, imodzi mwa opanga zazikulu kwambiri komanso ogulitsa mapaipi apulasitiki ndi zopangira ku China.Komanso, kampani eni zambiri 100 wakhazikitsa mizere chitoliro kupanga kuti patsogolo pa zoweta ndi kunja, 200 waika zida koyenera kupanga.Kupanga mphamvu kufika matani oposa 100 zikwi.Zake zazikulu zili ndi machitidwe 6 amadzi, gasi, dredging, migodi, ulimi wothirira ndi magetsi, mindandanda yopitilira 20 ndi zopitilira 7000.

ZOYESA ZINTHU		ZOTSATIRA			MAWU OTSIRIZA
KUONEKERA		ZOPANGITSA ZAMKATI NDI KUNJA KWA ZOPHUNZITSIRA ZIZIKHALA ZAUYE, ZOSAWIRITSA NDIPOpanda MAPEMPHERO, ZINTHU ZONSE, ZOKWANIRA ZOONEKERA NDI ZINTHU ZINTHU ZINTHU ZINA.ZOYANG'ANIRA ZINTHU ZINA ZOYENERA KUKHALA ZONSE ZOpanda ZOPANDA, ZItseko, ZINTHU ZONSE NDI KUSINTHA.			WOYENERA
SOCKET FITTING KAPENA ELECTRO FUSION SOCKET END		AVERAGE OD MM		/	WOYENERA
		KUKUBWA MM		/	WOYENERA
		KUCHOKERA KWAMBIRI MM		/	WOYENERA
		TUBULAR LENGTH MM		/	WOYENERA
ELECTRO FUSION FITTING BELL END		AVERAGE ID MM		ZAMBIRI 160	WOYENERA
		FUSION AREA Utali wa MM		ZAMBIRI 20	WOYENERA
		KUYA KWA SOCKET MM		68-98	WOYENERA
		KUCHOKERA KWAMBIRI MM		PASIPO 2.4	WOYENERA
KUGWIRITSA NTCHITO KWA ELECTRO FUSION FITTING				23℃MAX: mwadzina x (1+10%)+0.1ΩMIN: mwadzina x (1-10%)	WOYENERA
ZINTHU ZOTHANDIZA NDI ZINTHU ZOCHITIKA	NTHAWI YOTHANDIZA OXIDATION (200 ℃) MIN		ZAMBIRI 20		WOYENERA
	Mphamvu za Hydrostatic		80℃/, RING STRESS 5.4Mpa,DAMAAGE TIME≥165h,NO BREAK,NO LEAK
MAWU OGWIRITSA NTCHITO			KUKHALA KWA ZITSANZO ZIPAMBO KUYANIKIDWA MAKHALIDWE NDI ZOFUNIKA KWA CHINA STANDARD GB/T 15558.2-2005 "GAWO 2" PIPE LA POLYETHYLENE WOBIDWA (PE) PIPELINE SYSTEM YA MAPAPI A GESI:"PIPE FITTING'S PIPE FITTING'S ZOFUNIKIRA ZOPHUNZITSIRA". (GB/T 15558.2-2005 "GAWO 2" NDI CHIMODZI NDI EN1555-3:2010 )

1. Madzi a Municipal, gasi ndi ulimi etc.

2. Madzi a Commercial & Residential

3.Industrial zakumwa zoyendera

4.Chimbudzi chamadzi

5. Makampani opanga zakudya ndi mankhwala

6. Kusintha mapaipi a simenti ndi mapaipi achitsulo

7. Argillaceous silt, mayendedwe amatope.

8. Munda wobiriwira chitoliro maukonde

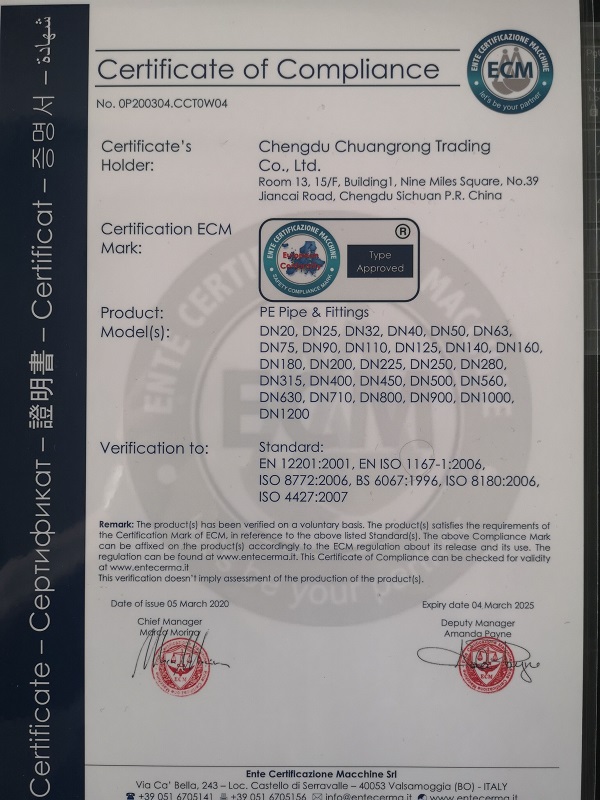

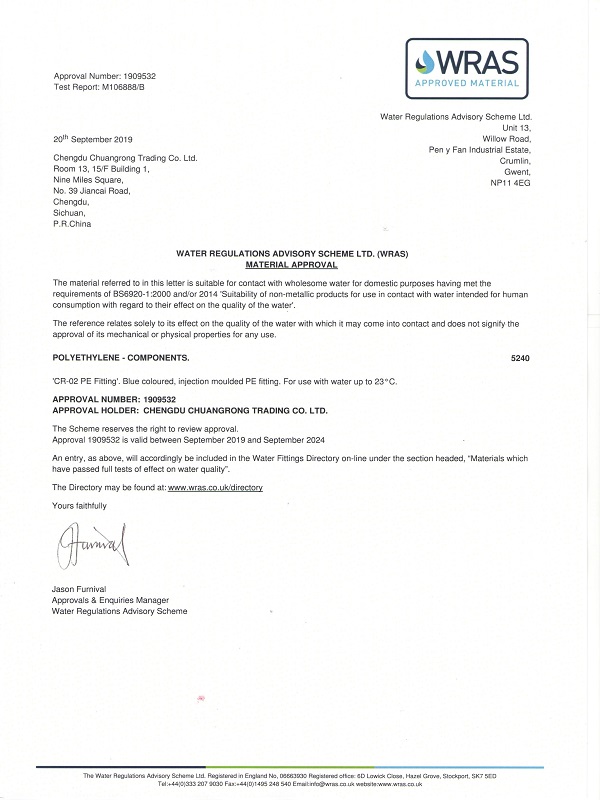

Titha kupereka ISO9001-2015, BV, SGS, CE etc.Mitundu yonse ya mankhwala nthawi zonse imachitika mayeso zolimba kuphulika, kotalika shrinkage mlingo mayeso, mwamsanga kupsinjika maganizo mng'alu kukana, kumakoka mayeso ndi kusungunula index mayeso, kuti kuonetsetsa khalidwe la mankhwala kufika kwathunthu mfundo zoyenera kuchokera zipangizo zomalizidwa mankhwala. .
