Vavu ya Mpira wa Polyethylne PE (Mavavu a Mpira Mmodzi- Purge Mpira, Mavavu a Mpira Wotsuka Awiri) a Chithunzi Choperekedwa ndi Gasi Wachilengedwe

Vavu ya Mpira wa Polyethylne PE (Mavavu a Mpira Mmodzi- Purge Mpira, Mavavu a Mpira Wotsuka Awiri) popereka Gasi Wachilengedwe

Kufotokozera Kwachidule:

1. Dzina:Ma Vavu a Mpira wa Gasi a PE ( Mavavu a Mpira wa One- Purge, Mavavu a Mpira Wotsuka Awiri)

2. KukulaKutalika: 32-400mm

3. Kupanikizika :SDR11, SDR17

4. Zofunika:PE80, PE100, PE100-RC

5. Mtundu:Black, Yellow, Orange

6. Standard :ISO4437-4: 2015, EN1555-4:2011, ASME B 16.40:2013

7. Kutumiza:Masiku 3-7, Kutumiza Mwachangu.

8. Kuyang'anira katundu:Kuyang'anira zopangira.Anamaliza kufufuza mankhwala.Kuyendera kwa chipani chachitatu pa pempho lamakasitomala.

Titumizireni imelo Tumizani imelo

Tsatanetsatane wa Zamalonda

Zolemba Zamalonda

Zambiri Zambiri

CHUANGRONG ndi share industry and trade Integrated company, yomwe inakhazikitsidwa mu 2005 yomwe imayang'ana kwambiri kupangaMapaipi a HDPE, Mapaipi & Mavavu, Mapaipi a PPR, Zopangira & Mavavu, PP compression fittings & Valves, ndi kugulitsa Pulasitiki Pipe Welding makina, Chitoliro Zida, Chitoliro Kukonza Clampndi zina zotero.

CHUANGRONG imatha kupereka Zopangira Zapamwamba za HDPE Electrofusion ndi valavu ya mpira ya Madzi, Gasi ndi Mafuta DN20-1200mm, SDR17, SDR11, SDR9 yokhala ndi barcode pamtengo wopikisana.

HDPE Mpira Vavu kwa Gasi Supply PN16 SDR11 PE100

Mtundu wa Zosakaniza	Kufotokozera	Diameter(mm)	Kupanikizika
Zithunzi za HDPE Electrofusion	EF Coupler	DN20-1400mm	SDR17, SDR11 SDR9(50-400MM)
	EF Reducer	DN20-1200mm	SDR17, SDR11 SDR9(50-400MM)
	EF 45 deg chigongono	DN50-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF 90 deg chigongono	DN25-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF uwu	DN20-800mm	SDR17, SDR11 SDR9(50-400MM)
	EF Kuchepetsa Tee	DN20-800mm	SDR17, SDR11 SDR9(50-400MM)
	Mtengo wa EF	DN50-400mm	SDR17, SDR11 SDR9(50-400MM)
	EF Stub End	DN50-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF Nthambi Saddle	DN63-1600mm	Mtengo wa SDR17, SDR11
	EF Tapping Saddle	DN63-400mm	Mtengo wa SDR17, SDR11
	EF Kukonza Saddle	DN90-315mm	Mtengo wa SDR17, SDR11

Takulandilani kudzayendera fakitale yathu kapena kuchita kafukufuku wa chipani chachitatu.

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku:chuangrong@cdchuangrong.com

Mafotokozedwe Akatundu

HDPE Ball Valve ya GAS Supply

1. Electrofusion fitting ndi pulasitiki (polyethylene) chitoliro choyenera chomwe chingagwirizane ndi kutentha kopangidwa ndi magetsi.Amapereka kulumikizana kwachangu, kolimba komanso kotetezeka pakuyika mapaipi amadzi ndi gasi.

2. Malekezero a HDPE electrofusion amaphimbidwa ndi waya wamkuwa.Makina a HDPE electrofusion amapereka magetsi ndipo amawotcha kudzera mu waya wamkuwa womwe umakulungidwa kumapeto kwa kuyenerera kuti ugwirizane.Kutentha kukakwera, kumasungunula mapeto amkati a HDPE electrofusion yoyenera ndi mapeto akunja a chitoliro cha HDPE.

3. Kuti mukwaniritse zowotcherera bwino, chitoliro cha HDPE chiyenera kuchotsa oxide wosanjikiza kumapeto welded.Panthawi imodzimodziyo, kusiyana pakati pa awiri akunja kwa chitoliro cha HDPE ndi mkati mwa chitoliro cha electrofusion cha HDPE chiyenera kukhala chochepa momwe zingathere.

4. Kuti agwire ntchito mosavuta, ma HDPE electrofusion joints ali ndi barcode, kusonyeza kuwotcherera voteji / kuwotcherera nthawi / nthawi yozizira, etc. Deta yowotcherera imasindikizidwanso pazinthu zowonjezera, ndipo oyikapo amatha kuyika mosavuta deta yowotcherera pa welder kuti amalize ntchito yowotcherera.

kujambula kwa valavu ya mpira wa HDpe_00

Kufotokozera

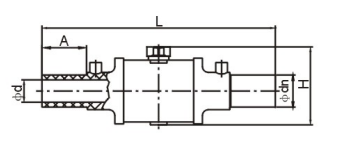

Standard Ball Valve

Zofotokozera φdn	L mm	A mm	H mm	φd
32	510	55	205	25
40	485	90	200	41
50	485	90	200	41
63	510	100	200	49
90	660	110	325	70
110	660	115	325	87
125	660	115	325	87
160	770	115	420	126
200	785	125	430	158
250	980	130	585	204
315	985	140	585	250
355	985	140	585	250
400	1065	222	750	257

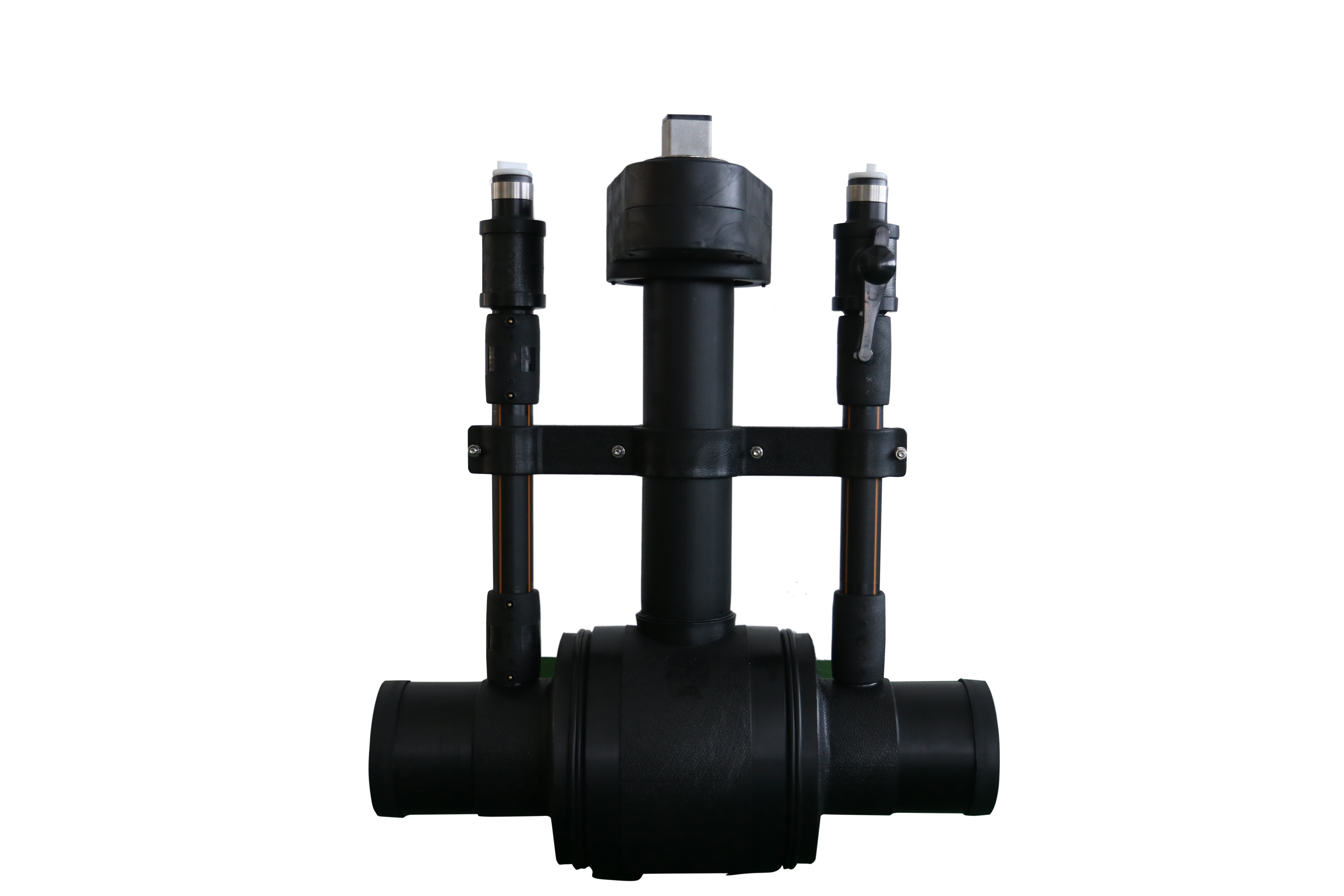

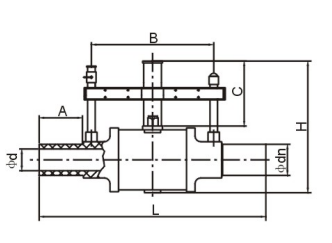

One-purge Ball Valves

Zofotokozera φdn	L mm	A mm	B mm	C mm	H mm	φd
63	520	100	235	520	640	49
90	660	110	330	590	835	70
110	680	115	330	590	830	87
125	680	115	330	590	830	87
160	750	115	435	590	900	126
200	780	125	435	600	935	158
250	920	140	540	600	1070	204
315	985	140	585	700	1180	250
355	985	140	684	700	1378
400	1065	222	684	892	1380

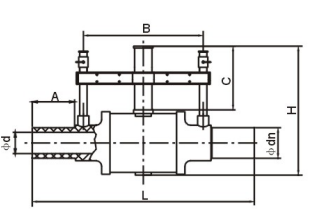

Ma Valves a Mpira Wambiri

Zofotokozera φdn	L mm	A mm	B mm	C mm	H mm	φd
90	660	110	330	590	835	70
110	680	115	330	590	830	87
125	680	115	330	590	830	87
160	760	115	415	590	800	126
200	780	125	435	600	935	158
250	980	140	585	700	1210	204
315	985	140	585	700	1245	250
355	985	140	684	914	1378
400	1065	222	684	892	1380

Kugwiritsa ntchito

1. Madzi a Municipal, gasi ndi ulimi etc.

2. Madzi a Commercial & Residential

3.Industrial zakumwa zoyendera

4.Chimbudzi chamadzi

5. Makampani opanga zakudya ndi mankhwala

6. Kusintha mapaipi a simenti ndi mapaipi achitsulo

7. Argillaceous silt, mayendedwe amatope

8. Munda wobiriwira chitoliro maukonde.

Zitsimikizo

Titha kupereka ISO9001-2008, BV, SGS, CE etc.Mitundu yonse ya mankhwala nthawi zonse imachitika mayeso zolimba kuphulika, kotalika shrinkage mlingo mayeso, mwamsanga kupsinjika maganizo mng'alu kukana, kumakoka mayeso ndi kusungunula index mayeso, kuti kuonetsetsa khalidwe la mankhwala kufika kwathunthu mfundo zoyenera kuchokera zipangizo zomalizidwa mankhwala. .

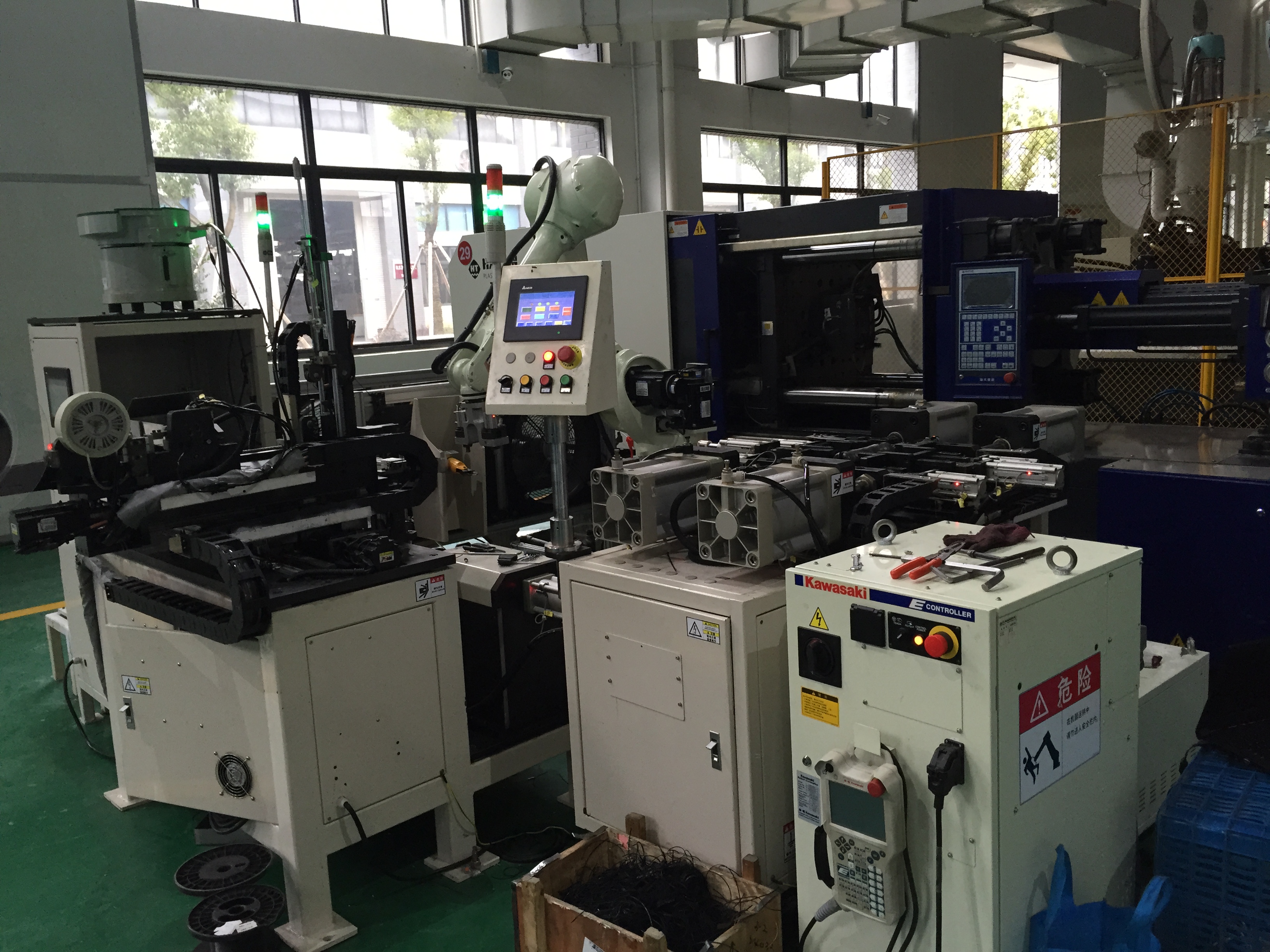

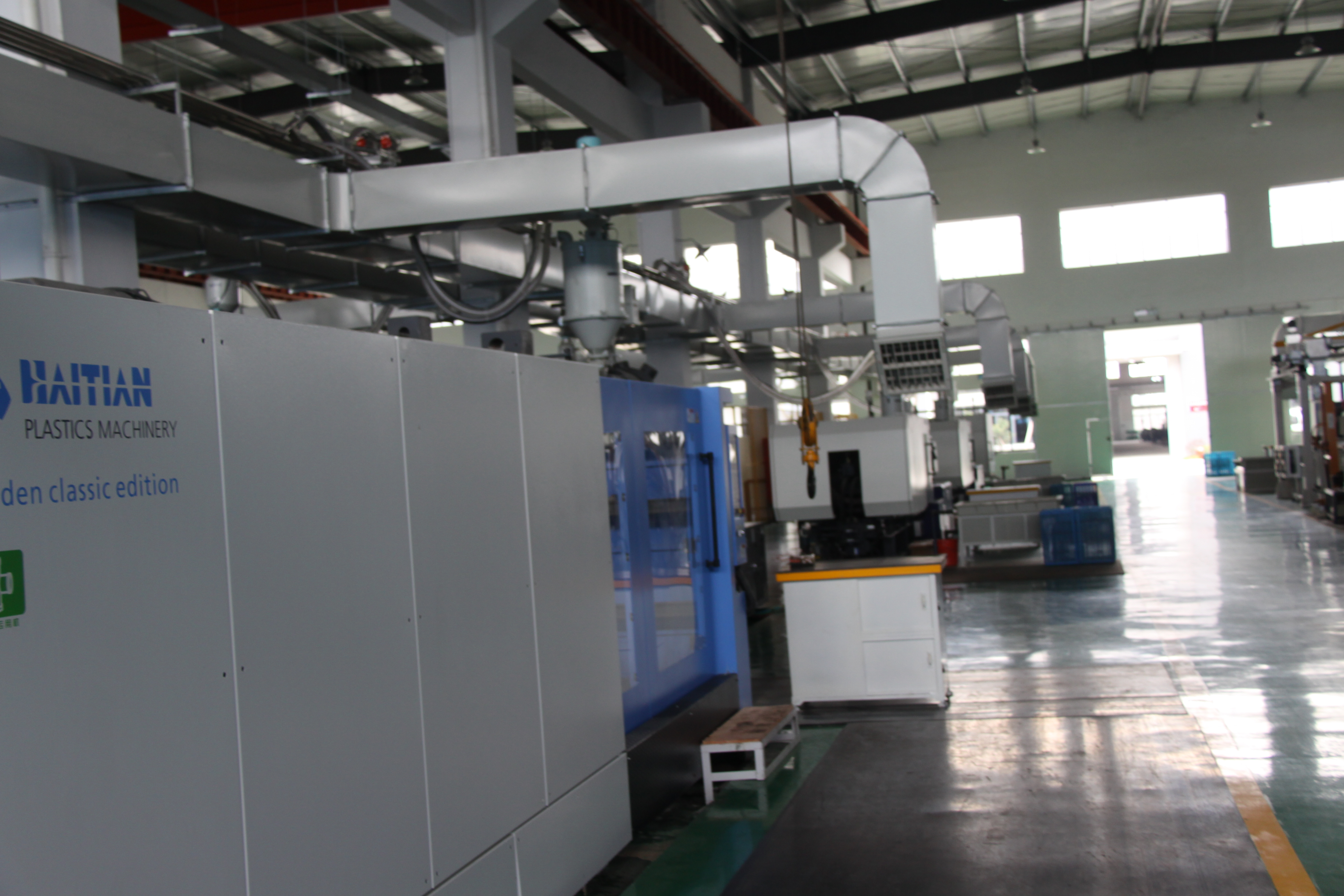

Msonkhano & Mayeso

CHUANGRONG ndi makampani ake ogwirizana amakhazikika mu R&D, kupanga, kugulitsa ndi kukhazikitsa mapaipi apulasitiki amtundu watsopano ndi zozolowera.Inali ndi mafakitale asanu, imodzi mwa opanga zazikulu kwambiri komanso ogulitsa mapaipi apulasitiki ndi zopangira ku China.Komanso, kampani eni zambiri 100 wakhazikitsa mizere chitoliro kupanga kuti patsogolo pa zoweta ndi kunja, 200 waika zida koyenera kupanga.Kupanga mphamvu kufika matani oposa 100 zikwi.Zake zazikulu zili ndi machitidwe 6 amadzi, gasi, dredging, migodi, ulimi wothirira ndi magetsi, mindandanda yopitilira 20 ndi zopitilira 7000.

Yesani chinthu	Standard	Zoyenera	Zotsatira	Chigawo
1.Melt Flow Index	ISO 1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10 min
2.Kuchulukana	ISO 1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO 11357	210°C>20	39	Min
4. Hydrostatic Pressure Test	ISO 1167	80°C 165h, 5.4Mpa	Wadutsa
5 Kuwona Kukula	ISO 3126	23°C	Wadutsa
6 Maonekedwe	Zoyera & Zosalala	23°C	Wadutsa

Zotsatira molingana ndi mayeso 1-3 zimatengedwa ngati lipoti la PE raw material supplier.
Zotsatira molingana ndi mayeso 4-6 amatengedwa kuchokera ku zotsatira za mayeso amkati a zotengera zomwe zatengedwa kuchokera ku
batch yofanana ndi zida zoperekedwa.
Kuyika chizindikiro molingana ndi EN 12201-3 ndi EN 1555-3.
Njira zodutsa / zolephera zimatengera zofunikira za UNI EN 12201 ndi UNI EN 1555 miyezo.

CHUANGRONG nthawi zonse amapereka zinthu zabwino kwambiri komanso mtengo kwa makasitomala.Zimapatsa makasitomala phindu labwino kuti apange bizinesi yawo molimba mtima.Ngati muli ndi chidwi ndi kampani yathu ndi katundu, chonde musazengereze kulankhula nafe kuti mudziwe zambiri.

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku: chuangrong@cdchuangrong.com kapena Tel:+ 86-28-84319855
