China Quick Delivery HDPE PE100/PE80 PN16/PN10 Jekeseni Wakuda Kuchepetsa Zopangira Tee Butt Fusion Kupanga ndi Factory |CHANGRONG

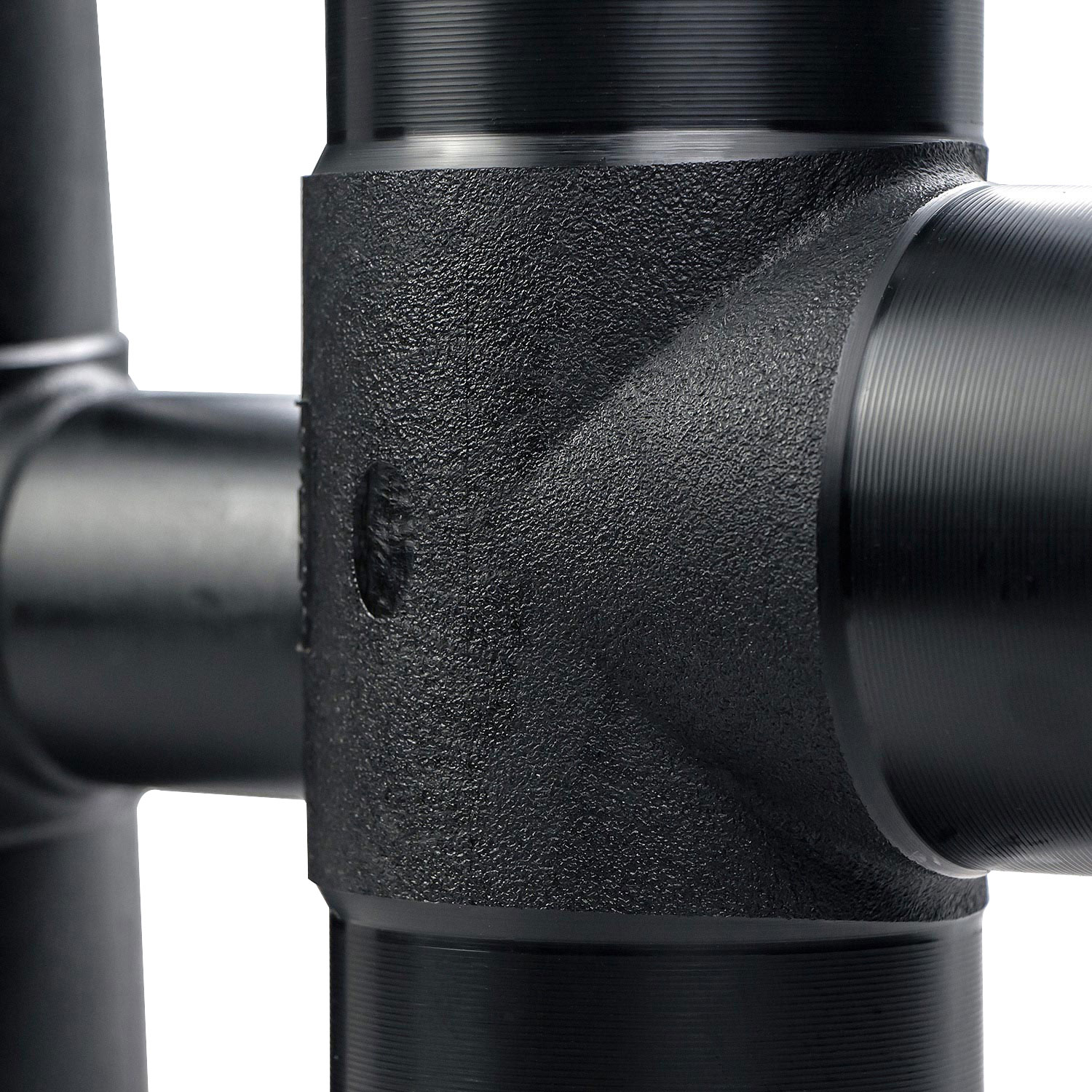

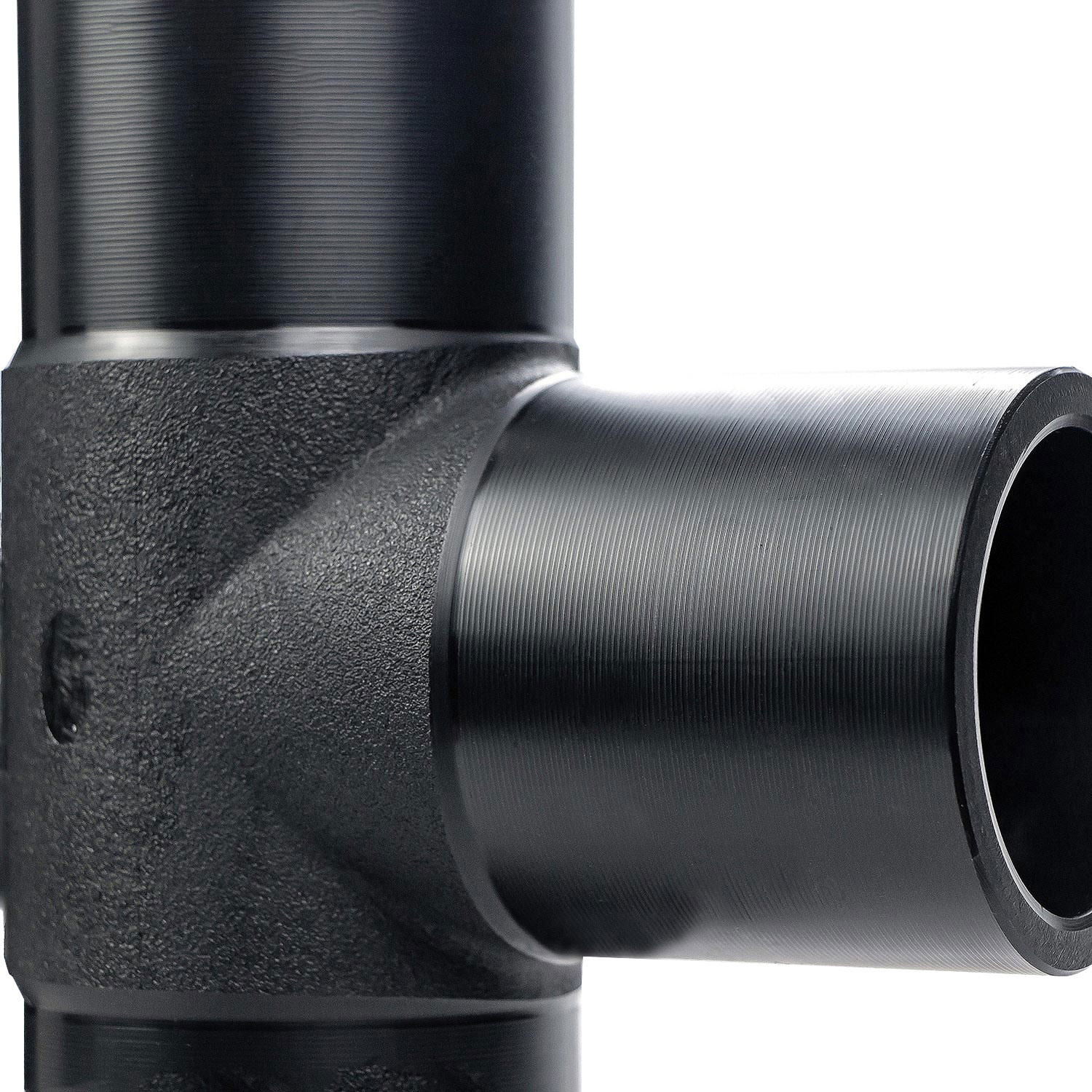

Kutumiza Mwachangu HDPE PE100/PE80 PN16/PN10 Jekeseni Wakuda Wochepetsa Zophatikiza za Tee Butt Fusion Chithunzi Chowonetsedwa

Kutumiza Mwachangu HDPE PE100/PE80 PN16/PN10 Jekeseni Wakuda Wochepetsera Zophatikiza za Tee Butt Fusion

Kufotokozera Kwachidule:

1. Dzina:Kuchepetsa Tee

2. Kukula:dn50-1200mm

3.Kupanikizika:PE100/SDR11 Madzi PN16/ Gasi 10 Bar

4. Kupanikizika :PE100 / SDR17 Madzi PN10/ Gasi 6 Bar

5. Muyezo:ISO4427, EN12201, ISO4437/ EN1555

6. Kuyika:Woodenkase,makatoni kapena matumba.

7. Kuyendera:Kuyang'anira zopangira.Anamaliza kufufuza mankhwala.Kuyendera kwa chipani chachitatu pa pempho lamakasitomala.

Titumizireni imelo Tumizani imelo

Tsatanetsatane wa Zamalonda

Kufotokozera

Workshop & Certification

Zolemba Zamalonda

Zambiri Zambiri

CHUANGRONG ndi share industry and trade Integrated company, yomwe inakhazikitsidwa mu 2005 yomwe imayang'ana kwambiri kupangaMapaipi a HDPE, Mapaipi & Mavavu, Mapaipi a PPR, Zopangira & Mavavu, PP compression fittings & Valves, ndi kugulitsa Pulasitiki Pipe Welding makina, Chitoliro Zida, Chitoliro Kukonza Clampndi zina zotero.

PE100/PE80 PN16/PN10 Jekeseni Wakuda Wochepetsa Tee

Mtundu	Specification	Diameter(mm)	Kupanikizika
Zosakaniza za HDPE Butt Fusion	Wochepetsera	DN50-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Equal Tee	DN50-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Kuchepetsa Tee	DN50-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Tee Lateral (45 deg Y Tee)	DN63-315mm	SDR17,SDR11, SDR9(90-400mm)
	22.5 Deg Elbow	DN110-1200mm	SDR17,SDR11, SDR9(90-400mm)
	30 Deg Elbow	DN450-1200mm	SDR17,SDR11, SDR9(90-400mm)
	45 Deg Elbow	DN50-1200mm	SDR17,SDR11, SDR9(90-400mm)
	90 Deg Elbow	DN50-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Cross Tee	DN63-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Kuchepetsa Cross Tee	DN90-1200mm	SDR17,SDR11, SDR9(90-400mm)
	End Cap	DN20-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Stub End	DN20-1200mm	SDR17,SDR11, SDR9(90-400mm)
	Male(Female) Union	DN20-110mm 1/2'-4'	SDR17, SDR11

Takulandilani kudzayendera fakitale yathu kapena kuchita kafukufuku wa chipani chachitatu.

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku:chuangrong@cdchuangrong.com

Mafotokozedwe Akatundu

Zogulitsa:

1. SpecificGravity,g/cm3,20(C):0.941-0.965

2. LongitudinalReversion,%(110(C)):<=3

3. OxidationInductionTime,min(200(C)):>=20

4. ExtensionRateatBreak.%:>=350

5. HydraulicPressureTest:

1) 20(C),HoopStressis12.4Mpa,100h:Palibe Kulephera.

2) 80(C),HoopStressis5.5Mpa,165h:Palibe Kulephera.

3) 80(C),HoopStressis5.0Mpa,1000h:NoFailure.

Reducer Tee

Zipangizo	Chithunzi cha PE100
Kukula	Dn50-800mm
Dzina	Buttfusion Reducer Tee
Maonekedwe	T mawonekedwe
Miyezo	ISO EN
Mtundu	ChuangRong

CHUANGRONG nthawi zonse amapereka zinthu zabwino kwambiri komanso mtengo kwa makasitomala.Zimapatsa makasitomala phindu labwino kuti apange bizinesi yawo molimba mtima.Ngati muli ndi chidwi ndi kampani yathu ndi katundu, chonde musazengereze kulankhula nafe kuti mudziwe zambiri.

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku:chuangrong@cdchuangrong.comkapena Tel:+ 86-28-84319855

Zam'mbuyo: HDPE Socket Fusion Fittings Female Tee PE100 PN16 SDR11 For Industrial Liquids Transportation

Ena: Kukula Kwathunthu Buluu Wapamwamba Wopanikizika PPR Pipe Kwa HAVC Ndi Madzi Ozizira

PE100/PE80 PN16/PN10 Jekeseni Wakuda Wochepetsera Zophatikiza za Tee Butt Fusion

Zofotokozera φdn×φdn1×dn	L mm	A mm	B mm	H mm
50 × 32 × 50	165	55	55	81
50 × 40 × 50	230	80	72	110
63 × 25 × 63	168	63	45	85
63 × 32 × 63	172	63	45	87
63 × 40 × 63	180	63	50	93
63 × 50 × 63	190	63	55	96
75 × 32 × 75	180	70	39	90
75 × 40 × 75	205	70	45	93
75 × 50 × 75	205	70	55	100
75x63x75	225	70	63	107
90 × 32 × 90	215	79	45	105
90 × 40 × 90	220	79	50	108
90 × 50 × 90	230	79	55	110
90 × 63 × 90	245	79	63	118
90 × 75 × 90	252	79	70	126
110 × 32 × 110	220	82	50	115
110 × 40 × 110	230	82	50	119
110 × 50 × 110	238	82	55	123
110 × 63 × 110	250	82	63	118
110 × 75 × 110	264	82	70	137
110 × 90 × 110	275	82	79	135
125 × 63 × 125	320	87	63	143
125 × 75 × 125	314	87	70	152
125 × 90 × 125	309	87	79	151
125 × 110 × 125	318	87	82	160
140 × 110 × 140	315	92	82	164
140 × 125 × 140	330	92	87	167
160 × 50 × 160	270	96	70	161
160 × 63 × 160	275	98	63	153
160 × 75 × 160	287	98	70	167
160 × 90 × 160	300	98	79	175
160 × 110 × 160	325	98	82	175
160 × 125 × 160	335	98	87	181
160 × 140 × 160	345	98	92	186
180 × 90 × 180	338	105	79	181
180 × 110 × 180	355	105	82	187
180 × 125 × 180	365	105	87	91
180 × 140 × 180	380	105	92	196
180 × 160 × 180	400	105	98	202
200 × 63 × 200	305	112	63	176
200 × 75 × 200	310	112	70	183
200×90×200	330	112	73	191
200 × 110 × 200	355	112	82	196
200 × 125 × 200	370	112	87	201
200×160×200	420	112	98	207
225 × 90 × 225	345	120	79	207
225 × 110 × 225	365	120	82	212
225 × 160 × 225	417	120	98	212
225 × 180 × 225	433	95	86	209
250 × 90 × 250	395	129	79	218
250 × 110 × 250	395	129	82	216
250 × 125 × 250	410	129	87	221
250 × 160 × 250	398	95	81	218
250 × 180 × 250	460	129	105	245
250 × 200 × 250	379	75	112	254
280 × 90 × 280	410	140	79	235
280 × 110 × 280	430	140	82	238
280 × 160 × 280	480	140	98	254
280×200×280	520	140	112	268
280 × 225 × 280	545	140	122	278
280×250×280	570	140	129	285
315 × 90 × 315	420	150	79	255
315 × 110 × 315	442	150	82	225
315 × 160 × 315	450	130	77	247
315 × 180 × 315	503	150	105	291
315 × 200 × 315	455	110	95	285
315 × 225 × 315	550	150	120	292
315 × 250 × 315	460	80	80	248
315 × 280 × 315	582	140	110	320
355 × 250 × 355	620	170	120	290
355 × 315 × 355	620	120	120	290
400 × 200 × 400	670	130	150	380
400 × 250 × 400	670	130	150	380
400 × 315 × 400	670	160	150	380
400 × 355 × 400	670	145	150	380
450 × 315 × 450	805	195	150	405
450 × 400 × 450	805	170	170	41
500 × 125 × 500	860	190	90	370
500×160×500	860	190	98	378
500×250×500	860	190	115	400
500 × 315 × 500	860	190	150	425
500×400×500	860	190	170	430
560 × 160 × 560	910	235	98	455
560 × 250 × 560	910	205	129	465
560 × 355 × 500	910	235	135	465
560 × 400 × 560	910	235	165	500
630 × 400 × 630	995	255	165	530
630×500×630	990	210	180	510

Takulandilani kuti mulankhule nafe kuti mumve zambiri zamalonda ndi ntchito zamaluso.

Chonde tumizani imelo ku:chuangrong@cdchuangrong.comkapena Tel:+ 86-28-84319855

CHUANGRONG ndi makampani ake ogwirizana amakhazikika mu R&D, kupanga, kugulitsa ndi kukhazikitsa mapaipi apulasitiki amtundu watsopano ndi zozolowera.Inali ndi mafakitale asanu, imodzi mwa opanga zazikulu kwambiri komanso ogulitsa mapaipi apulasitiki ndi zopangira ku China.Komanso, kampani eni zambiri 100 wakhazikitsa mizere chitoliro kupanga kuti patsogolo pa zoweta ndi kunja, 200 waika zida koyenera kupanga.Kupanga mphamvu kufika matani oposa 100 zikwi.Zake zazikulu zili ndi machitidwe 6 amadzi, gasi, dredging, migodi, ulimi wothirira ndi magetsi, mindandanda yopitilira 20 ndi zopitilira 7000.

CHUANGRONG ali ndi njira zodziwira zathunthu ndi mitundu yonse ya zida zodziwikiratu zapamwamba kuti zitsimikizire kuwongolera kwamtundu uliwonse kuyambira pazopangira mpaka zomaliza.Zogulitsazo zimagwirizana ndi ISO4427/4437, ASTMD3035, EN12201/1555, DIN8074, AS/NIS4130 muyezo, ndikuvomerezedwa ndi ISO9001-2015, CE, BV, SGS, WRAS.
