90 - 315 Mm Wheels Butt Fusion Welding Machine Ndi Wyes Clamp Steel Frame

Kufotokozera Kwachidule:

1. A akatswiri kuwotcherera mahine kwa ngalande chitoliro

2. Ntchito zosiyanasiyana: 90-315mm

3. Angathe kuwotcherera ( Elbow, Tee, Y-tee)

Titumizireni imelo

Tsatanetsatane wa Zamalonda

Zogulitsa Tags

Zambiri Zoyambira

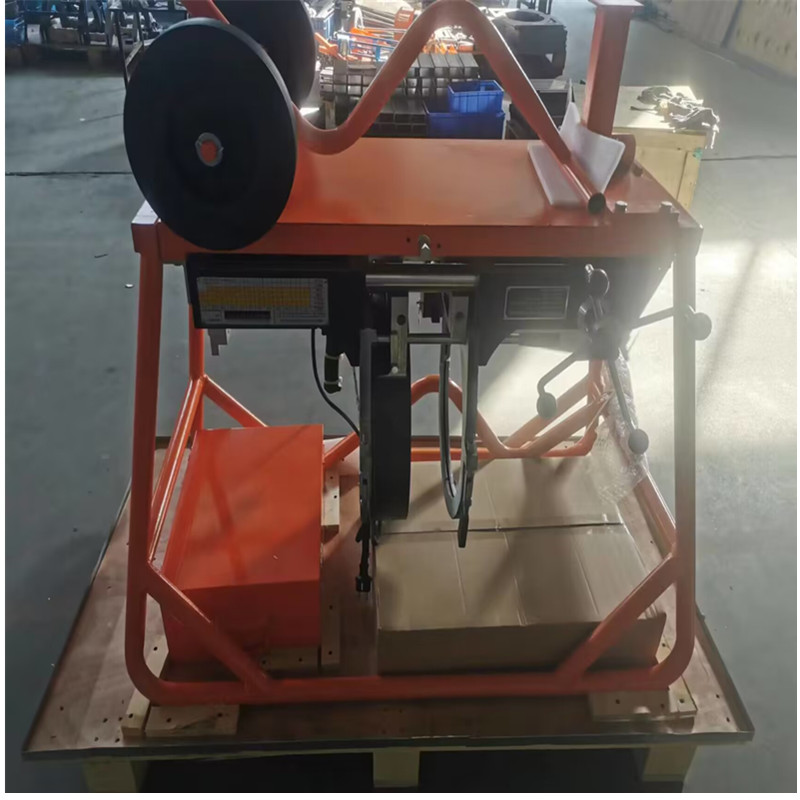

Lingaliro laukadaulo wamakina owotcherera pamapaipi apakatikati ndi zotayira mpaka 315mm.Zimapangidwa ndi makina opangira makina owongolera mphamvu, zingwe ziwiri zogwirizira, chodulira chowongolera ndi magetsi chowongolera malekezero a chitoliro ndi / kapena kuyika ma microswitch otetezeka, mbale yotenthetsera yotulutsa yokhala ndi zida zamagetsi zodziwikiratu kutentha, chothandizira chotsetsereka, chimango chachitsulo chachitsulo pamawilo tha chimakhala ngati benchi yogwirira ntchito komanso chitetezo ponyamula makina.MAXI315 imatha kuwotcherera zopangira monga ma bend ndi ma tee.Nthambi zimathanso kuwotcherera chifukwa cha zomangira zing'onozing'ono (zopezeka popempha) zomwe zikuwonetsedwa pamadiameter onse omwe akugwira ntchito.

Butt Fusion Welder Machine Standard kapangidwe kake

1. Chitsulo chimango pamawilo (chonyamula ndi kugwiritsidwa ntchito ngati ntchito)

2. Kutentha mbale

3. Wodula mphero

4. AC clamps

5. Mlandu wamatabwa

Mukapempha:

1. Wyes clamps

2. High workbench suppot

Mafotokozedwe Akatundu

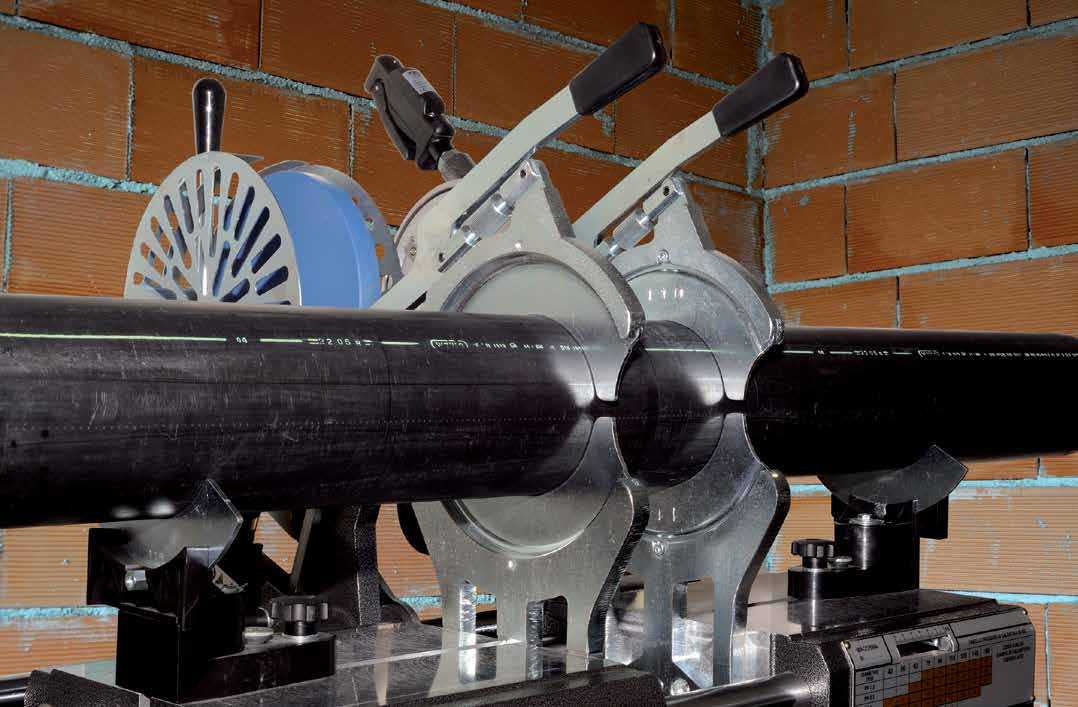

TheMINI,ndiMAXIndi makina owotcherera a PE drainage conduits.Amawotchereranso mapaipi ena a thermoplastic (PP, PB, PVDF ndi PVC).

Pogwiritsa ntchito ma clamp omwe amaperekedwa, makinawo amalembedwa "P” kapena “Y” (ndizovomerezeka pamitundu ya MINI yokha).

Chitsanzo cha kuwotcherera zotheka ndiMINI-MAXI

Chifukwa chapadera clamps mawonekedwe, ndiMINI Y amatha kuletsa komanso nthambi zoyenera pazochokera zake zonse.

M'makina a MAXI315 ndikofunikira kuyika zida zapadera popempha kuwotcherera zotengera zonse.

mu MAXI315 pali ma clamps apadera omwe amatha kuchotsedwa

MAWONEKEDWE

	MINI 160	Mtengo wa MAXI315
Ntchito zosiyanasiyana	Ø 40 ÷ Ø 160	Ø 90 O315
Zida zowotcherera	HD-PE	HD-PE, PP, PB, PVDF
Kutentha kozungulira	-5 ÷ +40 °C	-5 ÷ +40 °C
Magetsi	230VAC 50/60Hz	230VAC 50/60Hz
Kutentha kwa ntchito	180¸280 °C	180¸280 °C
Mphamvu yotengedwa ndi gawo la Kutentha	1200 W	3000W
Mphamvu yotengedwa ndi Milling cutter	760W	760W
Mphamvu zonse zotengedwa	1960W	3760W
Makina akugwiritsidwa ntchito [ W × D × H ]	800 × 930 × 1140 mm	1420 × 1300 × 1570 mm
Makina akugwiritsidwa ntchito [W × D × H]	525 × 480 × 710 mm	1200 × 680 × 1045 mm
Kulemera kwa Heating element	3,21kg	10,56 kg
Kulemera konse (muyezo zikuchokera)	50.6kg (P) 54kg (Y)	183kg pa

* Pa pempho pali chinthu chotenthetsera chokhala ndi chowongolera chamagetsi chosinthika (TE) (180÷280°C) kuwotcherera zinthu zina za thermoplastic (HD-PEPP, PB, PVDF ndi PVC).

Kufotokozera

MINI 160 P

KulemeraP clamp adaputala(4 zidutswa / Æ)

Ø40 pa	Ø50 pa	Ø 56*	Ø63 ndi	Ø 75	Ø90 pa	Ø 110	Ø125	Ø 140*
1,43kg	1,41kg	1,34kg	1,33 kg	1,28kg	1,16kg	0,91kg pa	0,78kg pa	0,60kg pa
Kulemera konse= 10,24 kg

Kulemerama adapter othandizira(2 zidutswa/Æ)

Ø40 pa	Ø50 pa	Ø 56*	Ø63 ndi	Ø 75	Ø90 pa	Ø 110	Ø125	Ø 140*
0,35kg pa	0,34kg pa	0,33kg pa	0,32 kg	0,30 kg	0,28kg pa	0,24kg pa	0,21kg pa	0,16kg pa
Kulemera konse= 2.53 kg

*pa pempho

MINI 160 Y

Kulemeransagwada zam'mwamba zotengedwa(2 zidutswa/Æ)

Ø40 pa	Ø50 pa	Ø 56*	Ø63 ndi	Ø 75	Ø90 pa	Ø 110	Ø125	Ø 140*	Ø 160
0,90kg pa	0,90kg pa	0,90kg pa	1,14kg	1,12 kg	1,14kg	1,10 kg	1,22 kg	1,12 kg	1,10 kg
Kulemera konse= 10,64 kg

Kulemerama adapter(2 zidutswa/Æ)

Ø40 pa	Ø50 pa	Ø 56*	Ø63 ndi	Ø 75	Ø90 pa	Ø 110	Ø125	Ø 140*
0,72 kg	0,71kg pa	0,67kg pa	0,66kg pa	0,64kg pa	0,58kg pa	0,46kg pa	0,39kg pa	0,30 kg
Kulemera konse= 5.13 kg

Kulemerama adapter othandizira(2 zidutswa/Æ)

Ø40 pa	Ø50 pa	Ø 56*	Ø63 ndi	Ø 75	Ø90 pa	Ø 110	Ø125	Ø 140*
0,35kg pa	0,34kg pa	0,33kg pa	0,32 kg	0,30 kg	0,28kg pa	0,24kg pa	0,21kg pa	0,16kg pa
Kulemera konse= 2.53 kg

*pa pempho

Mtengo wa MAXI315

Kulemerama adapter(4 zidutswa / Æ)

Ø90 pa	Ø 110	Ø125	Ø 140	Ø 160	Ø 180	Ø 200	Ø225	Ø 250	ndi 280
6,30 kg	6,10kg	5,90kg	5,50kg	5,20 kg	4,80kg	4,70kg	3,70 kg	3,00kg	2,00kg
Kulemera konse= 47,20 kg

Kulemerama adapter othandizira(2 zidutswa/Æ)

Ø90 pa	Ø 110	Ø125	Ø 140	Ø 160	Ø 180	Ø 200	Ø225	Ø 250	ndi 280
1,10 kg	1,00kg	1,00kg	0,90kg pa	0,80kg pa	0,70 kg	0,60kg pa	0,50 kg	0,40kg pa	0,30 kg
Kulemera konse= 7.30 kg

Kulemerawyes (Y) clamps(zidutswa 2 / Æ)

Ø90 pa	Ø 110	Ø125	Ø 140	Ø 160	Ø 180	Ø 200	Ø225	Ø 250	ndi 280	ndi 315
5,56kg	6,28kg	6,74kg	7,20 kg	7,62kg	9,06kg pa	9,70kg	9,50kg	9,54kg	13.42 kg	14.14kg
Kulemera konse= 98,76 kg
