China ASTM/ ISO Standard Customizable PN6-PN25 HDPE Stub End Flange Adapter yokhala ndi khosi lalifupi, khosi lalitali Kupanga ndi Factory |CHANGRONG

ASTM/ ISO Standard Customizable PN6-PN25 HDPE Stub End Flange Adapter yokhala ndi khosi lalifupi, khosi lalitali

1. Dzina: HDPE Flange Adaptor / Stud End

2. Kukula: dn20-dn1200mm

3. PE100 Madzi PN16 kapena PN10 / Gasi 10 Bar kapena 6 Bar

4. Muyezo: ISO4427 ISO4437/EN1555/ASTM

Zofunika:	Pulasitiki	Kulumikizana:	Buttfusion
Mawonekedwe:	Flange	Dzina lazogulitsa:	Mapaipi Opatsa Madzi Kuyika Stub Flange End Adapter Hdpe Fusion Fittings
Norminal Pressure:	Chithunzi cha PN10 PN16	SDR:	Mtengo wa 17.6 SDR11

Mapaipi Opatsa Madzi Kuyika Stub Flange End Adapter Hdpe Fusion Fittings

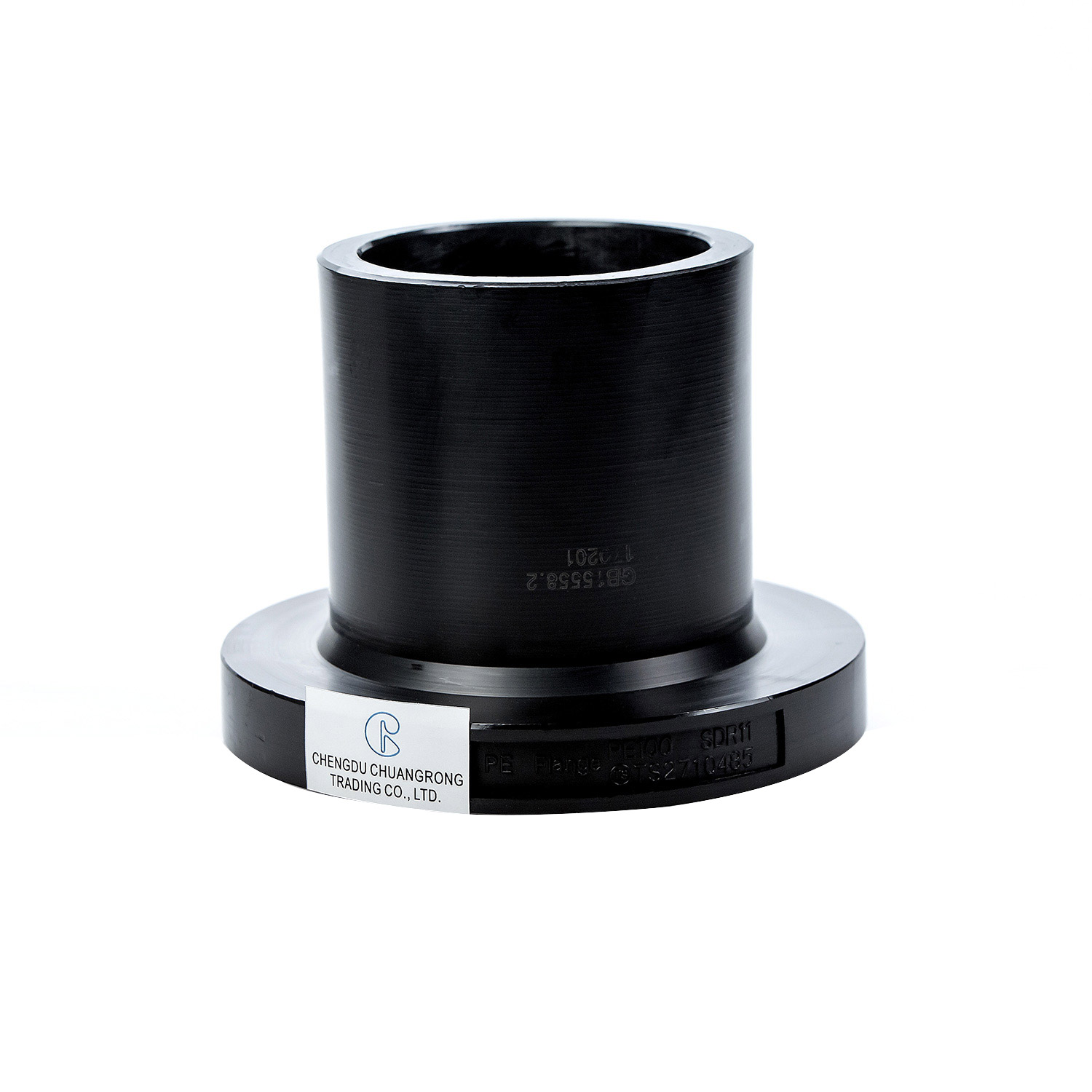

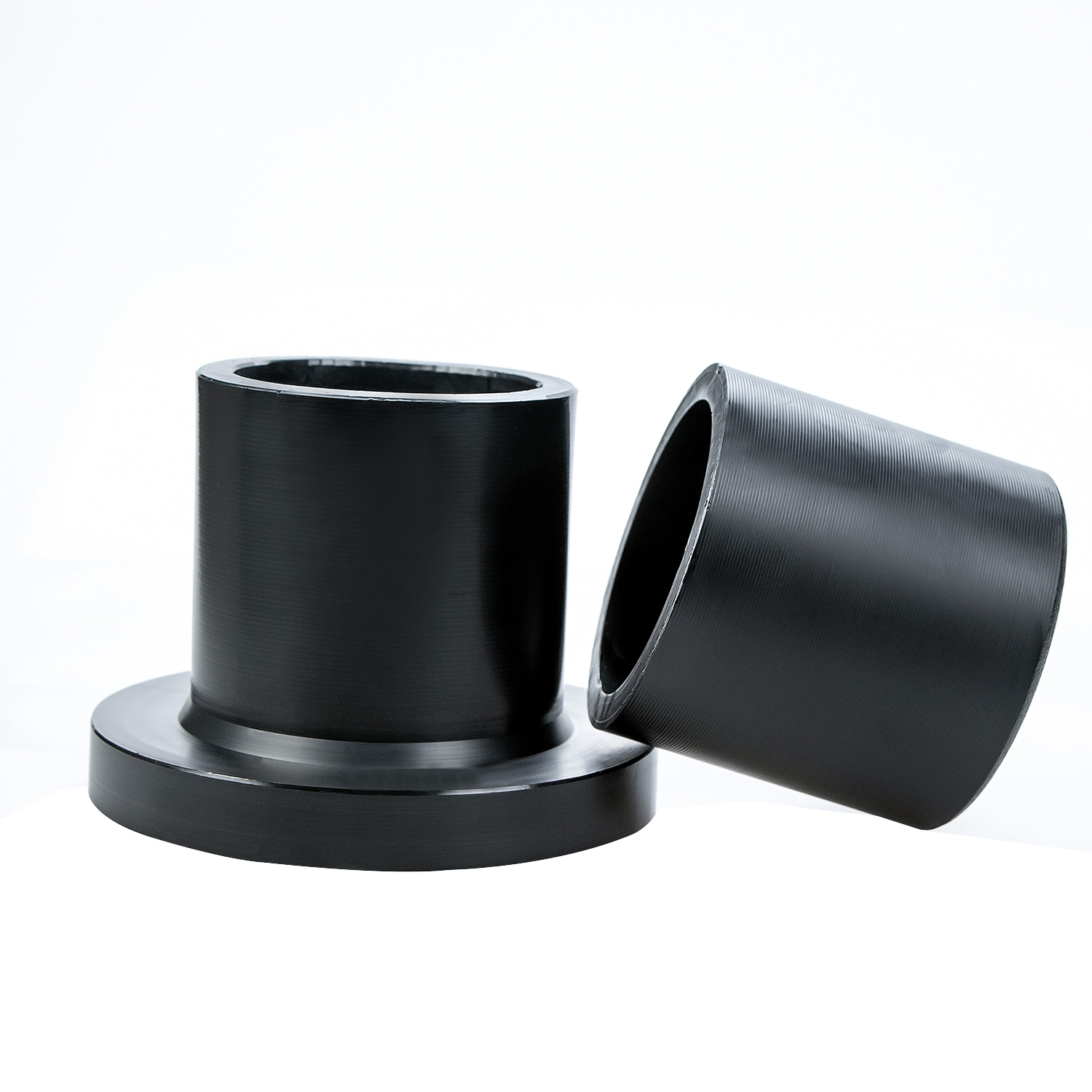

Tsatanetsatane wa stub end

Dzina lazinthu	Buttfusion Flange yoyenera Stub End
Makulidwe Opezeka	20-1000 mm
Zithunzi za SDR	Mbiri ya SDR11 SDR17
PN	PN16
Zakuthupi Brand	3490/3440
Executive Standard	EN 12201-3:2011, EN 1555-3:2010,ISO
Mitundu Ikupezeka	Mtundu wakuda, mtundu wa buluu, Orange kapena ngati pempho.
Njira Yopakira	Kulongedza katundu wamba.pa katoni
Nthawi Yotsogolera Yopanga	Malinga ndi dongosolo quantity.Normal za 15-20 masiku 20ft chidebe, 30-40 masiku chidebe 40ft.
Satifiketi	ISO, CE
Kupereka Mphamvu	100000 zidutswa / Chaka
Njira yolipirira	T/T, L/C pakuwona
Njira Yogulitsa	EXW, FOB, CFR, CIF

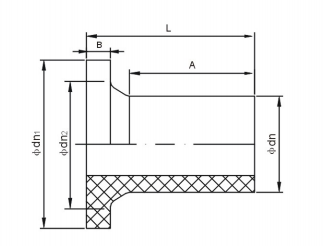

Kukula (inchindi mm)	Zithunzi za SDR	OD-1	T-1	L	OD-2	T-2
2”	11	2.37	0.22	5.98	4.00	0.40
		60.198 mm	5.588 mm	151.892 mm	101.6 mm	10.16 mm
2”	17	2.37	0.14	5.98	4.00	0.40
		60.198 mm	3.556 mm	151.892 mm	101.6 mm	10.16 mm
3”	11	3.50	0.32	5.98	5.00	0.60
		88.9 mm	8.128 mm	151.892 mm	127 mm	15.24 mm
3”	17	3.50	0.20	5.98	5.00	0.60
		88.9 mm	5.08 mm	151.892 mm	127 mm	15.24 mm
4”	11	4.50	0.41	5.98	6.60	0.80
		114.3 mm	10.414 mm	151.892 mm	167.64 mm	20.32 mm
4”	17	4.50	0.26	5.98	6.60	0.80
		114.3 mm	6.604 mm	151.892 mm	167.64 mm	20.32 mm
6”	11	6.63	0.60	7.99	8.50	0.80
		168.402 mm	15.24 mm	202.946 mm	215.9 mm	20.32 mm
6”	17	6.63	0.39	7.99	8.50	0.80
		168.402 mm	9.906 mm	202.946 mm	215.9 mm	20.32 mm
8”	11	8.63	0.78	9.02	10.60	0.80
		219.202 mm	19.812 mm	229.108mm	269.24 mm	20.32 mm
8”	17	8.63	0.51	9.02	10.60	0.80
		219.202 mm	13.9954 mm	229.108mm	269.24 mm	20.32 mm

Kukula (inchindi mm)	Zithunzi za SDR	OD-1	T-1	L	OD-2	T-2
10”	11	10.75	0.98	9.02	12.80	1.30
		273.05 mm	24.892 mm	229.108mm	325.12 mm	33.02 mm
10”	17	10.75	0.63	9.02	12.80	0.90
		273.05 mm	16.002 mm	229.108mm	325.12 mm	22.86 mm
12”	11	12.75	1.16	10.79	15.00	1.50
		323.85	29.464 mm	274.066 mm	381 mm	38.1 mm
12”	17	12.75	0.75	10.79	15.00	1.00
		323.85	19.05 mm	274.066 mm	381 mm	25.4 mm
14”	11	14.00	1.27	11.00	17.50	1.70
		355.6 mm	32.258 mm	279.4 mm	444.5 mm	43.18 mm
14”	17	14.00	0.82	11.00	17.50	1.10
		355.6 mm	20.828 mm	279.4 mm	444.5 mm	27.94 mm
16”	11	16.00	1.45	12.00	20.00	1.90
		406.4 mm	36.83 mm	304.8 mm	508 mm	48.26 mm
16”	17	16.00	0.94	12.00	20.00	1.20
		406.4 mm	23.876 mm	304.8 mm	508 mm	30.48 mm
18”	11	18.00	1.64	12.00	21.10	2.10
		457.2 mm	41.656 mm	304.8 mm	535.94 mm	53.34 mm
18”	17	18.00	1.06	12.00	21.10	1.40
		457.2 mm	26.924 mm	304.8 mm	535.94 mm	35.56 mm
20”	11	20.00	1.82	12.00	23.50	2.30
		508 mm	46.228 mm	304.8 mm	596.9 mm	58.42 mm
20”	17	20.00	1.18	12.00	23.50	1.50
		508 mm	29.972 mm	304.8 mm	596.9 mm	38.1 mm
22”	11	22.00	2.00	12.00	25.60	2.50
		558.8 mm	50.8 mm	304.8 mm	650.24 mm	63.5 mm
22”	17	22.00	1.29	12.00	25.60	1.60
		558.8 mm	32.766 mm	304.8 mm	650.24 mm	40.64 mm
24”	11	24.00	2.18	14.00	27.90	2.90
		609.6 mm	55.372 mm	355.6 mm	708.66 mm	73.66 mm
24”	17	24.00	1.41	14.00	27.90	1.80
		609.6 mm	35.814 mm	355.6 mm	708.66 mm	45.72 mm
